[Solved] ID 1220 LDAPS 8009030e No credentials are available in the security package

You get the following error message in the LDAP event log:

Id                    : 1220
Message      : LDAP over Secure Sockets Layer (SSL) will be unavailable at this time because the server was unable to obtain a certificate.

               Additional Data
               Error value:
               8009030e No credentials are available in the security package

1220 LDAP over Secure Sockets Layer SSL will be unavailable at this time because the server was unable to obtain a certificate 8009030e No credentials are available in the security package

The reason

It is always a certificate problem.
However, there can be multiple reasons behind the same error message,
and all the following requirement have to be met.

Certificate requirements

certificate stores

  • A private key that matches the certificate is present in the Local Computer’s store and is correctly associated
    with the certificate.

With or without private key

  • The private key strong protection has to be disabled.
    KeyProtection = NCRYPT_UI_NO_PROTCTION_FLAG

certificate strong protection disabled

  • The Enhanced Key Usage extension includes the Server Authentication (1.3.6.1.5.5.7.3.1) object identifier (also
    known as OID).

    [EnhancedKeyUsageExtension]
     OID=1.3.6.1.5.5.7.3.1 ; Server Authentication

    Server Authentication policy for the certificate template

  • The certificate was issued by a CA that the domain controller and
    the LDAPS clients trust. Trust is
    established by configuring the clients and the server to trust the root CA
    to which the issuing CA chains.

certificate stores

  • You must use the Schannel CSP to generate the key.
    ProviderName = "Microsoft RSA SChannel Cryptographic Provider"

    Microsoft RSA SChannel Cryptographic Provider

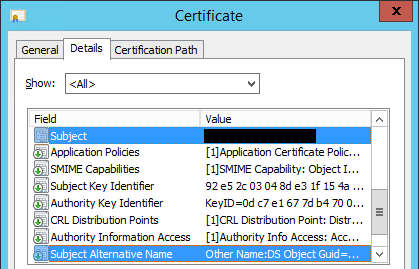

  • The Active Directory fully qualified domain name of the domain controller (for example, DC01.DOMAIN.COM) must
    appear in one of the following places:

    • The CN in the Subject field.
    • DNS entry in the Subject Alternative Name extension.

Note

This last requirement was the problem in my case.
I falsely assumed that having the DNS entry in
the Subject field was sufficient.

In fact, it must be both in the subject and also in the SAN
field. Furthermore, it must be the first one in the list.

More about

How
to enable LDAP over SSL with a third-party certification authority (KB321051)

4 thoughts on “[Solved] ID 1220 LDAPS 8009030e No credentials are available in the security package

  1. The LDAPS certificate is located in the
    Local Computer‘s Personal certificate store (programmatically known as the
    computer’s MY certificate store).
    Notice that with newer versions of Windows Server / AD LDS, the AD LDS service might be running as “Network Service” with a per-service certificate store, or as a service account with a personal certificate store. In these cases, the certificate must be present in that specific store.

  2. Hi, I am facing similar issue, but I struggle to follow this explanation. Can you provide a little more details please?
    How do I change The Enhanced Key Usage?
    How do I use Schannel CSP to generate the key?
    I only know how to import cert in mmc, but I don’t know how to access the other dialogs in your screenshots.
    Thanks

    1. Hi Mike!
      You must open the certificate template console.
      See my other post: https://itluke.online/2017/12/05/how-to-open-the-certificate-templates-console/

      Then just use the same settings as on the screenshots.

      1 “Cryptography” tab
      2 Select “Determined by CSP” (Channel Service Provider) as Algorithm name
      3 Select “Request must use one of these providers”
      4 Check “Microsoft RSA SChannel Service Provider”

      1 “Extension” tab
      2 Select “Application policies”
      3 Click the “Edit” button
      4 Select “Server authentication”

      Have a nice day Mike!
